-Pump
1. 3-second time delay of pump start after plugging into
the socket to avoid potential danger caused by electric
sparks
2. Automatic stop in 6 minutes in case of no water inside
3. Automatic switching to small flow control system in
condition of small water flow
4. Automatic 10-cecond operation every 72 hours for anti-
block protection in caseof no use for long time
5. Anti-freezing in low temperature environment by
automatic start and stop control to maintain the water
temperate inside pump between 4℃ and 60℃
6. LCD screen with on/off pressure setting,operation status
and malfunction alam
7. Remote monitoring and controlling by computer or mobbile
phone
-Motor
1. High efficiency bearing
2. Motor with copper winding
3. Built-in thermal protector for single phase motor(≤1.5KW)
4. Insulation class: F
5. Protection class: IPX4
6. Max.ambient temperature: +40℃
MODEL | POWER | AMPERE | Max.FLOW (L/Min) | Max.HEAD (m) | SUCT.MAX (m) | PIPE | G.W. (Kg) | Q(m3/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | |
Kw | Hp | Q(L/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | |||||||
ZVM 370SEB | 0.37 | 0.5 | 2.5 | 35 | 38 | 9 | 1″×1″ | 11 | H (m) | 38 | 35 | 30 | 25 | 20 | 15 | 10 | 5 | - | - |
ZVM 600SEB | 0.6 | 0.8 | 3.6 | 50 | 45 | 9 | 1″×1″ | 13 | 45 | 40 | 34 | 28 | 22 | 17 | 12 | 7 | - | - | |
ZVM 750SEB | 0.75 | 1.0 | 4 | 50 | 55 | 9 | 1″×1″ | 14 | 55 | 49 | 43 | 37 | 30 | 25 | 20 | 14 | 7 | 1 | |
ZVM 1100SEB | 1.1 | 1.5 | 6.5 | 90 | 50 | 9 | 1.5″×1.5″ | 21 | 50 | 47 | 45 | 44 | 43 | 42 | 41 | 37 | 35 | 33 | |
ZVM 1500SEB | 1.5 | 2 | 9 | 100 | 60 | 9 | 1.5″×1.5″ | 22 | 60 | 57 | 55 | 54 | 53 | 52 | 51 | 47 | 45 | 43 |

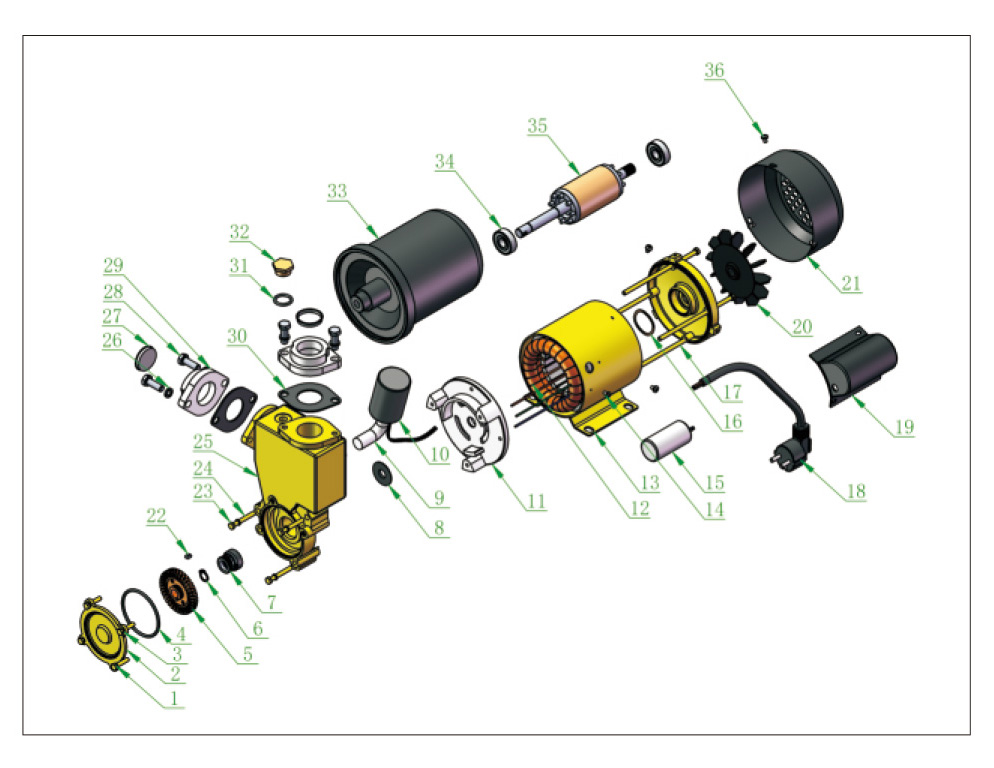

N0. | Description | N0. | Description | N0. | Description |
1 | Hex bolt | 18 | Screw | 35 | Dust cap |
2 | Washer | 19 | Capacitor | 36 | Key |
3 | Pump body | 20 | Terminal box cover | 37 | Impeller |
4 | O-ring | 21 | Screw | 38 | Flange pad |
5 | Filling plug | 22 | Screw | 39 | Strainer |
6 | O-ring | 23 | Fan cover | 40 | Flange |
7 | Splash guard | 24 | Fan | 41 | Washer |
8 | Screw | 25 | Motor case | 42 | Screw |
9 | Motor front bracket | 26 | Pressure tank | 43 | |
10 | Bearing | 27 | Pressure switch | 44 | |
11 | Rotor | 28 | O-ring | 45 | |
12 | Adjusting ring | 29 | O-ring | 46 | |
13 | Stator | 30 | Washer | 47 | |
14 | Water proof fairlead | 31 | Circlip | 48 | |
15 | Cable clip | 32 | Menchanical seal | 49 | |
16 | Terminal box | 33 | Flow switch | 50 | |
17 | Screw | 34 | Water injection | 51 |
