ZJM
-Pump
1. Cast irom pump body and support under
special anti-rust treatment
2. Stainless steel impeller/Brass impeller
3. AISI 304 shaft
4. Max.liquid temperature: +40 ℃
5. Max.suction: +9 m
-Motor
1. High efficiency bearing
2. Motor with copper winding
3. Built-in thermal protector for single phase motor
4. Insulation class: F
5. Protection class: IPX4
6. Max.ambient temperature: +40℃
| MODEL | POWER | AMPERE | Max.FLOW (L/Min) | Max.HEAD (m) | SUCT.MAX (m) | PIPE | G.W. (Kg) | Q(m3/h) | 0 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3.0 | 3.6 | |
| Kw | Hp | Q(L/min) | 0 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | |||||||
| ZJM 300 | 0.3 | 0.4 | 3 | 40 | 35 | 9 | 1″×1″ | 9.3 | H (m) | 35 | 26 | 22.5 | 20 | 18 | 16 | 14 | - | - | - |
| ZJM 450 | 0.45 | 0.6 | 3.2 | 40 | 40 | 9 | 1″×1″ | 10.2 | 41 | 32 | 28 | 25 | 22 | 20 | 18 | - | - | - | |
| ZJM 600 | 0.6 | 0.8 | 3.7 | 55 | 45 | 9 | 1″×1″ | 14.5 | 45 | 37 | 33.5 | 31 | 28.5 | 26 | 24 | 22.5 | - | - | |
| ZJM 750 | 0.75 | 1.0 | 4.6 | 70 | 40 | 9 | 1″×1″ | 15.8 | 40 | 36 | 34.5 | 33 | 31.5 | 30 | 29 | 28 | 36 | 24 | |
| ZJM 750H | 0.75 | 1.0 | 4.6 | 55 | 51 | 9 | 1″×1″ | 15.8 | 51 | 43 | 40 | 37 | 34.5 | 32 | 30 | 27.5 | - | - | |
| ZJM 900 | 0.9 | 1.2 | 5.8 | 70 | 48 | 9 | 1″×1″ | 16.7 | 48 | 44 | 42.5 | 41 | 39.5 | 38 | 36 | 35 | 33 | 31 | |
| ZJM 900H | 0.9 | 1.2 | 5.8 | 55 | 62 | 9 | 1″×1″ | 16.7 | 62 | 53 | 49 | 46 | 43 | 40 | 37 | 35 | - | - | |

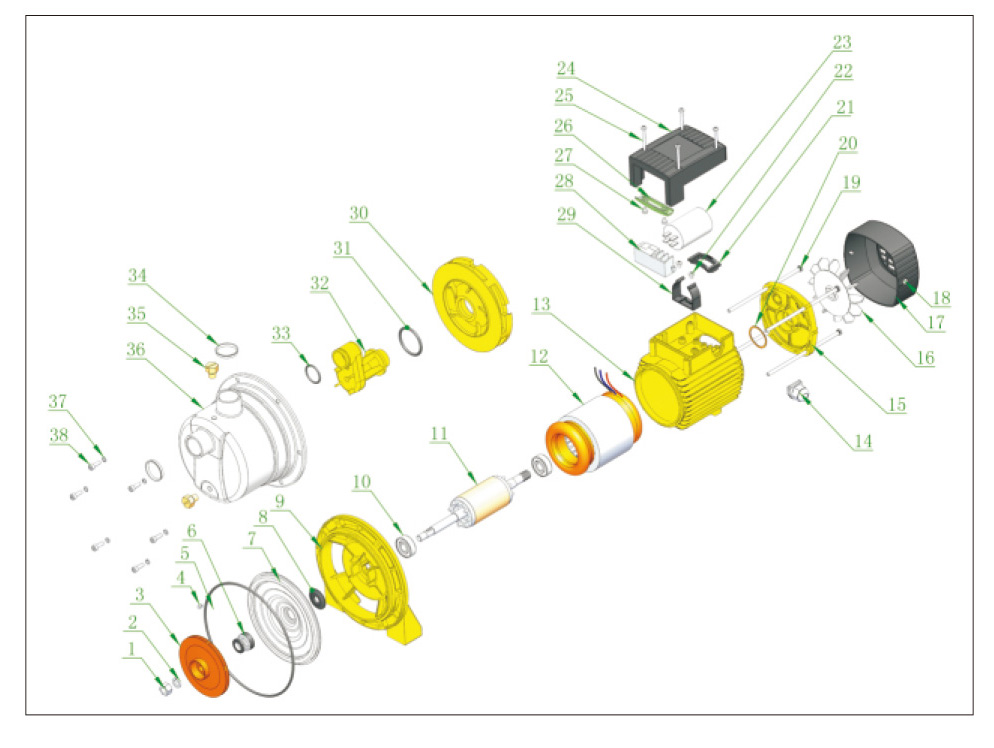

| N0. | Description | N0. | Description | N0. | Description |
| 1 | Impeller nut | 18 | Motor end cover | 35 | O-ring |
| 2 | Plain washer | 19 | Motor tie-rod | 36 | Dust cap |
| 3 | Impeller | 20 | Fan cover | 37 | Air screw |
| 4 | Key | 21 | Fan | 38 | Washer |
| 5 | Mechanical seal | 22 | Screw | 39 | Pump body |
| 6 | Oil seal | 23 | Cable sheath | 40 | Washer |
| 7 | O-ring | 24 | Screw | 41 | Air screw |
| 8 | Motor front bracket | 25 | Terminal box | 42 | |
| 9 | Washer | 26 | Capacitor | 43 | |
| 10 | Screw | 27 | Handle sheath | 44 | |
| 11 | Bearing | 28 | Screw | 45 | |
| 12 | Rotor | 29 | Screw | 46 | |
| 13 | Bearing | 30 | Capacitor holder | 47 | |
| 14 | Stator | 31 | Terminal borad | 48 | |
| 15 | Motor case | 32 | Diffuser | 49 | |
| 16 | Adjusting ring | 33 | O-ring | 50 | |
| 17 | Water proof fairlead | 34 | Venturi tube | 51 |
