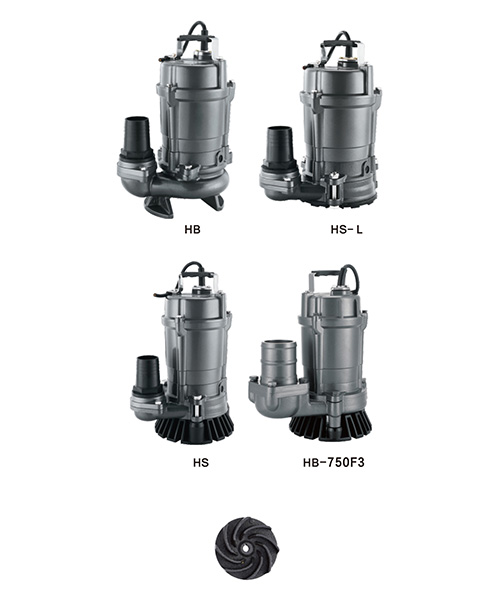

HS/HB
TECHNICAL DATA:
-Pump
Max.immersion depth: 5 m
Max.liquid temperature: +40 ℃
Liquid pH value: 4-10
Liquid kinematic viscosity: 7×10-7～23×10-6m2/s
Max.liquid density: 1.2×103kg/m3
-Motor
Copper winding
Built-in thermal protector
Insulation class: B
Protection class: IP68
| MODEL | POWER | AMPERE |
VOLTAGE (V/HZ) |
MAX. FLOW (L/MIN) |
Max. HEAD (m) |
Outlet (inch) |
G. W (kg) |
DIMENSIONS. (mm) |
|
| KW | HP | ||||||||
| HS-550F | 0.55 | 0.75 | 2.9 | 220/50 | 230 | 12 | 2" | 12.6 | 360×230×215 |
| HS-750F | 0.75 | 1 | 4 | 220/50 | 280 | 14 | 2" | 14.5 | 380×230×215 |
| HB-550F | 0.55 | 0.75 | 2.9 | 220/50 | 250 | 10 | 2" | 13 | 360×230×215 |
| HB-750F | 0.75 | 1 | 4 | 220/50 | 300 | 12 | 2" | 15 | 380×230×215 |
| HB-750F3 | 0.75 | 1 | 4 | 220/50 | 300 | 16 | 3" | 17 | 380×280×255 |

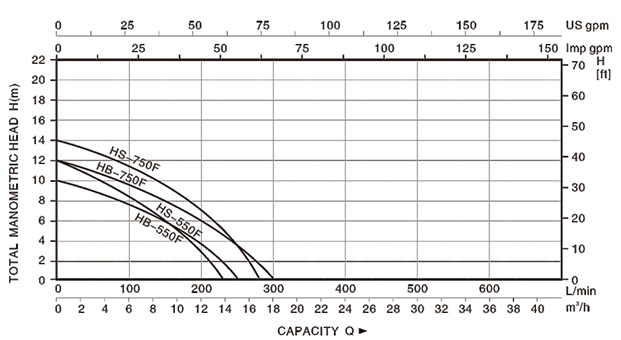

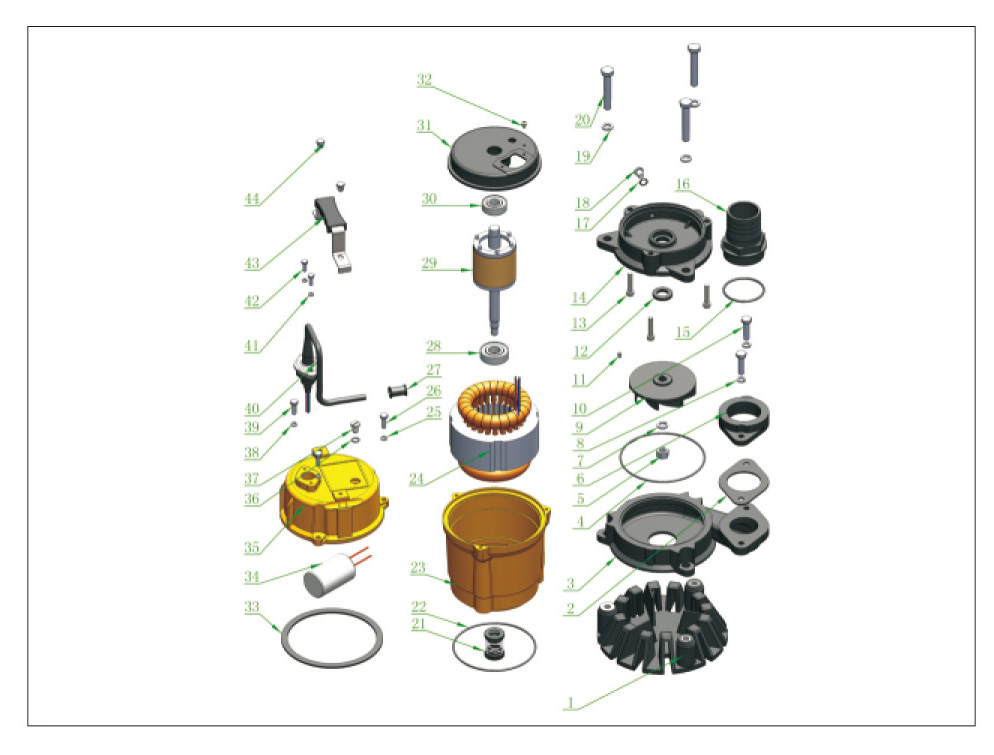

| N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|
| 1 | Pump foot | 18 | Screw | 35 | Upper cover |
| 2 | Flange washer | 19 | Washer | 36 | Washer |
| 3 | Pump base | 20 | Screw | 37 | Screw |
| 4 | O-ring | 21 | Mechanical seal | 38 | Washer |
| 5 | M10 nutr | 22 | O-ring | 39 | Screw |
| 6 | Flange | 23 | Motor case | 40 | Cable |
| 7 | Plain washer | 24 | Stator | 41 | Washer |
| 8 | Washer | 25 | Washer | 42 | Screw |
| 9 | Impelller | 26 | Screw | 43 | Handle |
| 10 | Screw | 27 | Cable sheath | 44 | Screw |
| 11 | Key | 28 | Bearing | 45 | |
| 12 | Mechanical seal | 29 | Rotor | 46 | |
| 13 | Screw | 30 | Bearing | 47 | |
| 14 | Oil chamber | 31 | Upper cover | 48 | |
| 15 | O-ring | 32 | Screw | 49 | |
| 16 | Dutlet | 33 | Rubber washer | 50 | |
| 17 | O-ring | 34 | Capacitor | 51 |
