From ltaly to serve the world

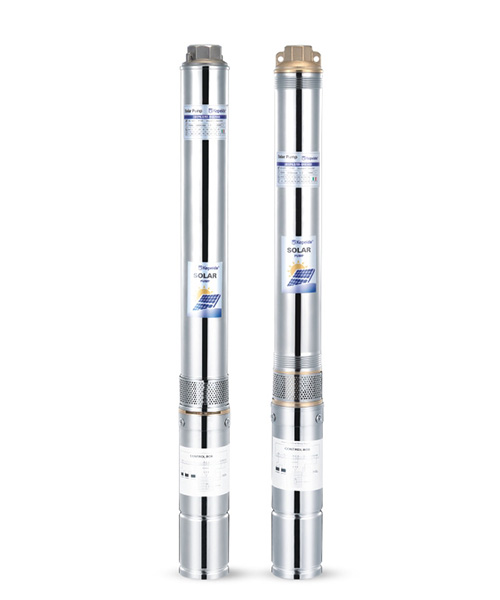

3DSP(6/7)
| Model | (DC) Voltage (V) | Best input voltage(DC) (V) | Motor power | Max Flow (M³/H) | Max Head (M) | Outlet (IN) | Cable (m) | Solar panel | ||
| Open circuit voltage(VOC)(V) | Power | |||||||||
| KW | HP | |||||||||
| 3DSP6/50-D48/600 | 48V | 60-90V | 0.6 | 0.82 | 6 | 50 | 1.5" | 2m | <105V | ≥1.3* Pump power |
| 3DSP6/67-D72/750 | 72V | 90-120V | 0.75 | 1 | 6 | 67 | 1.5" | 2m | <160V | ≥1.3* Pump power |
| 3DSP6/92-D72/1100 | 72V | 90-120V | 1.1 | 1.5 | 6 | 92 | 1.5" | 2m | <160V | ≥1.3* Pump power |
| 3DSP6/92-D110/1100 | 110V | 110-150V | 1.1 | 1.5 | 6 | 92 | 1.5" | 2m | <210V | ≥1.3* Pump power |
| 3DSP6/128-D110/1500 | 110V | 110-150V | 1.5 | 2 | 6 | 128 | 1.5" | 2m | <210V | ≥1.3* Pump power |
| 3DSP7/39-D48/600 | 48V | 60-90V | 0.6 | 0.82 | 7 | 39 | 1.5" | 2m | <105V | ≥1.3* Pump power |
| 3DSP7/45-D72/750 | 72V | 90-120V | 0.75 | 1 | 7 | 45 | 1.5" | 2m | <160V | ≥1.3* Pump power |
| 3DSP7/70-D72/1100 | 72V | 90-120V | 1.1 | 1.5 | 7 | 70 | 1.5" | 2m | <160V | ≥1.3* Pump power |
| 3DSP7/70-D110/1100 | 110V | 110-150V | 1.1 | 1.5 | 7 | 70 | 1.5" | 2m | <210V | ≥1.3* Pump power |
| 3DSP7/85-D110/1500 | 110V | 110-150V | 1.5 | 2 | 7 | 85 | 1.5" | 2m | <210V | ≥1.3* Pump power |
rpm:4000
