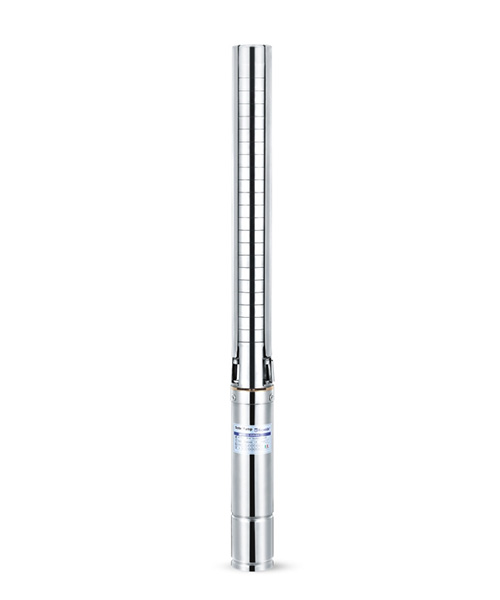

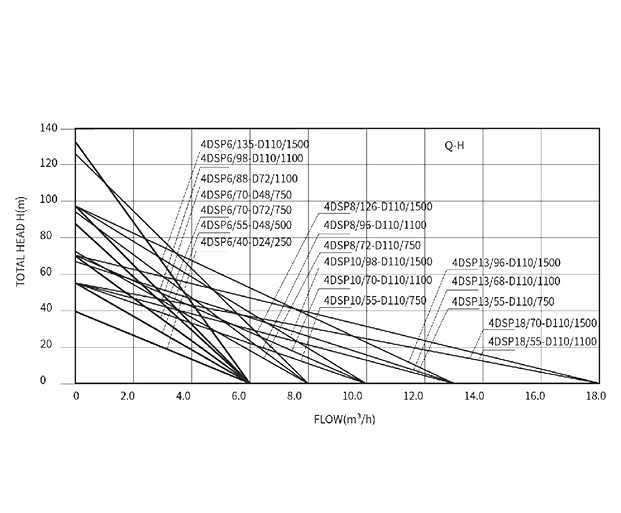

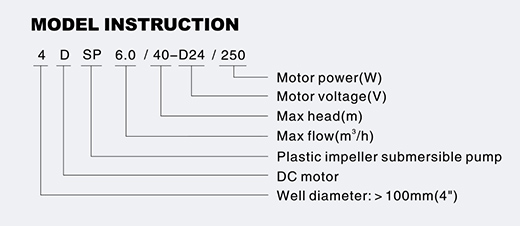

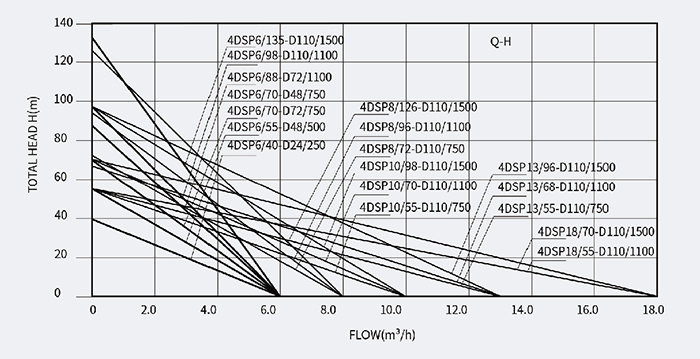

4DSP(6/8/10/13/18)

Model	(DC) Voltage (V)	Best input voltage(DC) (V)	Motor power		Max Flow (M³/H)	Max Head (M)	Outlet (IN)	Cable (m)	Solarpanel
			Motor power						Open circuit voltage(VOC)(V)	Power
			KW	HP					Open circuit voltage(VOC)(V)	Power
4DSP6/30-D24/250	24V	30-48V	0.25	0.33	6	30	1.25"	2m	<55V	≥1.3* Pump power
4DSP6/45-D48/500	48V	60-90V	0.5	0.68	6	45	1.25"	2m	<105V	≥1.3* Pump power
4DSP6/60-D48/750	48V	60-90V	0.75	1.0	6	60	1.25"	2m	<105V	≥1.3* Pump power
4DSP6/60-D72/750	72V	90-120V	0.75	1.0	6	60	1.25"	2m	<160V	≥1.3* Pump power
4DSP6/88-D72/1100	72V	90-120V	1.1	1.5	6	88	1.25"	2m	<160V	≥1.3* Pump power
4DSP6/95-D110/1100	110V	110-150V	1.1	1.5	6	95	1.25"	2m	<210V	≥1.3* Pump power
4DSP6/135-D110/1500	110V	110-150V	1.5	2.0	6	135	1.25"	2m	<210V	≥1.3* Pump power
4DSP8/65-D110/750	110V	110-150V	0.75	1.0	8	65	1.5"	2m	<210V	≥1.3* Pump power
4DSP8/88-D110/110	110V	110-150V	1.1	1.5	8	88	1.5"	2m	<210V	≥1.3* Pump power
4DSP8/112-D110/1500	110V	110-150V	1.5	2.0	8	112	1.5"	2m	<210V	≥1.3* Pump power
4DSP10/45-D110/750	110V	110-150V	0.75	1.0	10	45	2"	2m	<210V	≥1.3* Pump power
4DSP10/60-D110/1100	110V	110-150V	1.1	1.5	10	60	2"	2m	<210V	≥1.3* Pump power
4DSP10/85-D110/1500	110V	110-150V	1.5	2.0	10	85	2"	2m	<210V	≥1.3* Pump power
4DSP13/42-D110/750	110V	110-150V	0.75	1.0	13	42	2"	2m	<210V	≥1.3* Pump power
4DSP13/56-D110/1100	110V	110-150V	1.1	1.5	13	56	2"	2m	<210V	≥1.3* Pump power
4DSP13/85-D110/1500	110V	110-150V	1.5	2.0	13	85	2"	2m	<210V	≥1.3* Pump power
4DSP18/37-D110/1100	110V	110-150V	1.1	1.5	18	37	2"	2m	<210V	≥1.3* Pump power
4DSP18/50-D110/1500	110V	110-150V	1.5	2.0	18	50	2"	2m	<210V	≥1.3* Pump power
