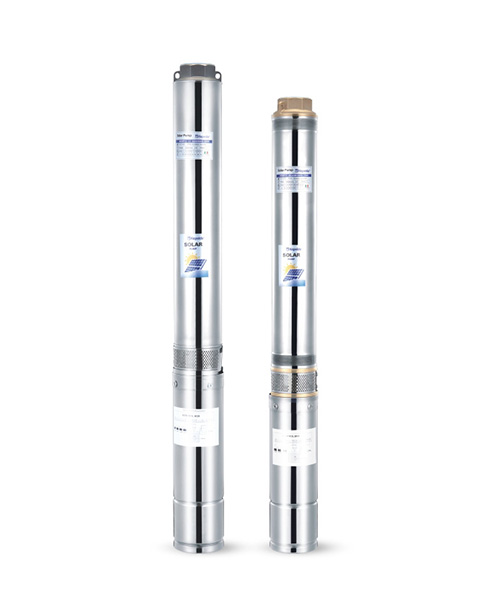

4DSP-A/D(22/32)

Model	(AC) Voltage (V)	(DC) Voltage (V)	Motor power		Max Flow (M³/H)	Max Head (M)	Outlet (IN)	Cable (m)	Solar panel
			Motor power						Open circuit voltage (VOC)(V)	Power
			KW	HP					Open circuit voltage (VOC)(V)	Power
4DSP22-40-A220/D200-1500	85-280V	80-430V	1.5	2	22	40	2"	2m	<430V	≥1.3* Pump power
4DSP22-63-A220/D300-2200	85-280V	80-430V	2.2	3	22	63	2"	2m	<430V	≥1.3* Pump power
4DSP22-63-A380/D550-2200	180-530V	520-650V	2.2	3	22	63	2"	2m	<780V	≥1.3* Pump power
4DSP22-75-A380/D550-3000	180-530V	520-650V	3.0	4	22	75	2"	2m	<780V	≥1.3* Pump power
4DSP22-98-A380/D550-4000	180-530V	520-650V	4.0	5.5	22	98	2"	2m	<780V	≥1.3* Pump power
4DSP22-136-A380/D550-5500	180-530V	520-650V	5.5	7.5	22	136	2"	2m	<780V	≥1.3* Pump power
4DSP22-170-A380/D550-7500	180-530V	520-650V	7.5	10	22	170	2"	2m	<780V	≥1.3* Pump power
4DSP32-33-A220/D200-1500	85-280V	80-430V	1.5	2	32	33	2"	2m	<430V	≥1.3* Pump power
4DSP32-44-A220/D300-2200	85-280V	80-430V	2.2	3	32	44	2"	2m	<430V	≥1.3* Pump power
4DSP32-44-A380/D550-2200	180-530V	520-650V	2.2	3	32	44	2"	2m	<780V	≥1.3* Pump power
4DSP32-55-A380/D550-3000	180-530V	520-650V	3.0	4	32	55	2"	2m	<780V	≥1.3* Pump power
4DSP32-66-A380/D550-4000	180-530V	520-650V	4.0	5.5	32	66	2"	2m	<780V	≥1.3* Pump power
4DSP32-90-A380/D550-5500	180-530V	520-650V	5.5	7.5	32	90	2"	2m	<780V	≥1.3* Pump power
4DSP32-122-A380/D550-7500	180-530V	520-650V	7.5	10	32	122	2"	2m	<780V	≥1.3* Pump power
