From ltaly to serve the world

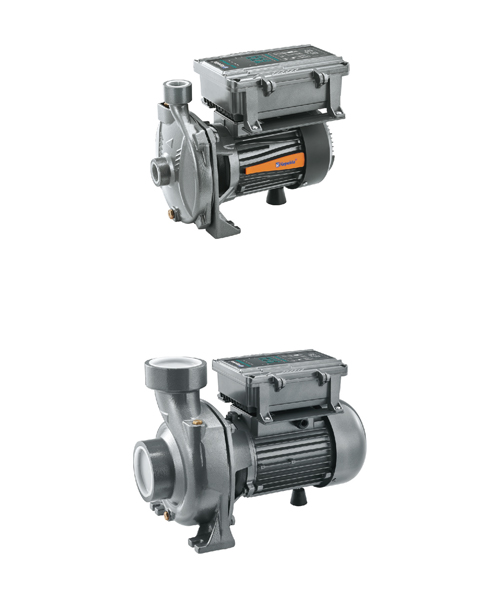

DCM
| Model | (AC) Voltage (V) |
(DC) Voltage (V) |
Motor power |
Max Flow (M³/H) |
Max Head (M) |
Outlet (IN) |
Solar panel | ||
| Open circuit voltage(VOC)(V) |
Power | ||||||||
| KW | HP | ||||||||
| DCM5-25-D48/500 | 60-90 | 0.5 | 0.75 | 5 | 25 | 1" | <105 | ≥1.3* Pump power | |
| DCM21-14-D72/750 | 90-120 | 0.75 | 1 | 21 | 14 | 2" | <160 | ≥1.3* Pump power | |
| DCM25-22-D110/1500 | 110-150 | 1.5 | 1 | 25 | 22 | 2" | <210 | ≥1.3* Pump power | |
| DCM56-15-D110/1500 | 110-150 | 1.5 | 2 | 56 | 15 | 3" | <210 | ≥1.3* Pump power | |
| DCM56-15-A220/D200-1500 | 85-280V | 80-430V | 1.5 | 2 | 56 | 15 | 3" | <430 | ≥1.3* Pump power |
| DCM66-19-A220/D300-2200 | 85-280V | 80-430V | 2.2 | 3 | 66 | 19 | 4" | <430 | ≥1.3* Pump power |
