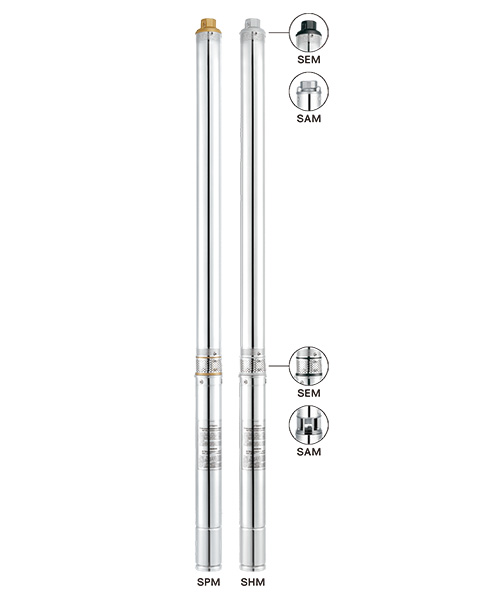

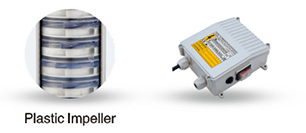

3SPM2
TECHNICAL DATA:
-Pump/Motor
Qmax: 3.8(m³/h)
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ75mm
Highest temperature of liquid: 35℃
Options of different materials are available.

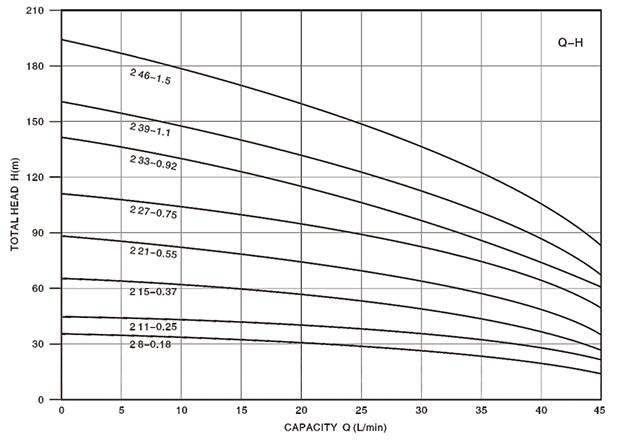

| Type | Motor power | Capacity and head | ||||||||||||
| single phase 220-240V~ Hz50 | Three phase 380-415V~ Hz50 | L/ min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | ||
| KW | HP | m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | ||
| 3S□M2 8-0.18 | 3S□2 8-0.18 | 0.18 | 0.25 | Head (m) | 34 | 34 | 33 | 33 | 31 | 29 | 26 | 23 | 19 | 14 |
| 3S□M2 11-0.25 | 3S□2 11-0.25 | 0.25 | 0.33 | 47 | 46 | 45 | 45 | 43 | 40 | 36 | 32 | 27 | 20 | |
| 3S□M2 15-0.37 | 3S□2 15-0.37 | 0.37 | 0.5 | 64 | 63 | 62 | 61 | 58 | 54 | 49 | 43 | 36 | 27 | |
| 3S□M2 21-0.55 | 3S□2 21-0.55 | 0.55 | 0.75 | 89 | 89 | 87 | 85 | 81 | 76 | 68 | 60 | 51 | 38 | |
| 3S□M2 27-0.75 | 3S□2 27-0.75 | 0.75 | 1 | 115 | 114 | 112 | 110 | 104 | 97 | 88 | 77 | 65 | 49 | |
| 3S□M2 33-0.92 | 3S□2 33-0.92 | 0.92 | 1.25 | 141 | 139 | 136 | 134 | 128 | 119 | 108 | 95 | 80 | 60 | |
| 3S□M2 39-1.1 | 3S□2 39-1.1 | 1.1 | 1.5 | 116 | 164 | 161 | 159 | 151 | 141 | 127 | 112 | 94 | 70 | |
| 3S□M2 46-1.5 | 3S□2 46-1.5 | 1.5 | 2 | 196 | 194 | 190 | 187 | 178 | 166 | 150 | 132 | 111 | 83 | |
rpm:2850 Outlet:G1"~1½"

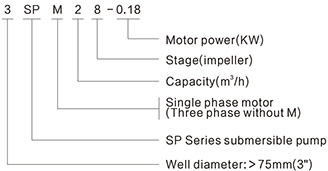

●3S□ in the above table can be replaced by any of 3SP,3SE,3SH
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 | Clamping spring | 14 | O-ring | 27 | Suction support | 40 | Bearing bush |
| 2 | End cover | 15 | Oil chamber | 28 | Strainer | 41 | Screw |
| 3 | Rubber cup | 16 | O-ring | 29 | Screw | 42 | Screw |
| 4 | Motor body | 17 | Screw | 30 | Screw | 43 | Diffuser |
| 5 | Screw | 18 | Sand proof sheath | 31 | Coupling | 44 | Guide bush |
| 6 | Washer | 19 | Washer | 32 | Bearing bush | 45 | Valve seat |
| 7 | Bearing seat | 20 | Sand proof cap | 33 | Intermediate support | 46 | Check valve |
| 8 | Stator | 21 | Screw | 34 | Guide bush | 47 | Screw |
| 9 | Ball bearing | 22 | Oil chamber cover | 35 | Shaft | 48 | Holder pipe |
| 10 | Rotor | 23 | Cable | 36 | Shaft ring | 49 | Cable cover |
| 11 | Ball bearing | 24 | Stud | 37 | Diffuser cover | 50 | Pump bod |
| 12 | Gasket | 25 | washer | 38 | Impeller | 51 | Outlet |
| 13 | Thrust bearing | 26 | Nut | 39 | Diffuser | 52 | Control box |
